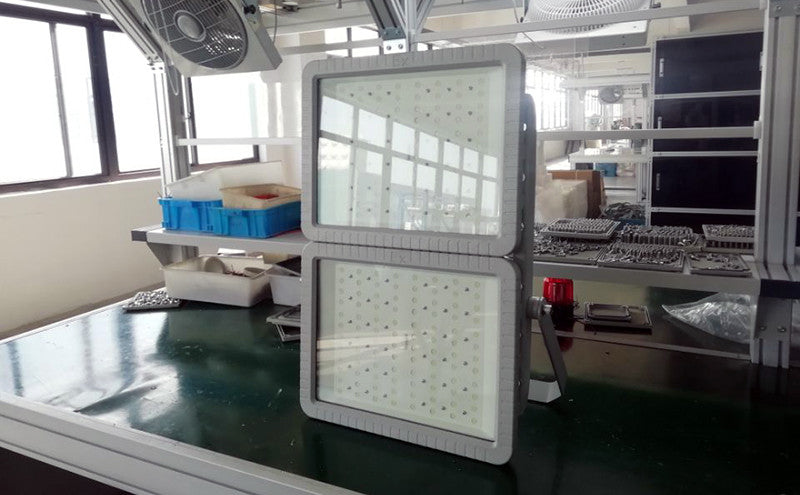

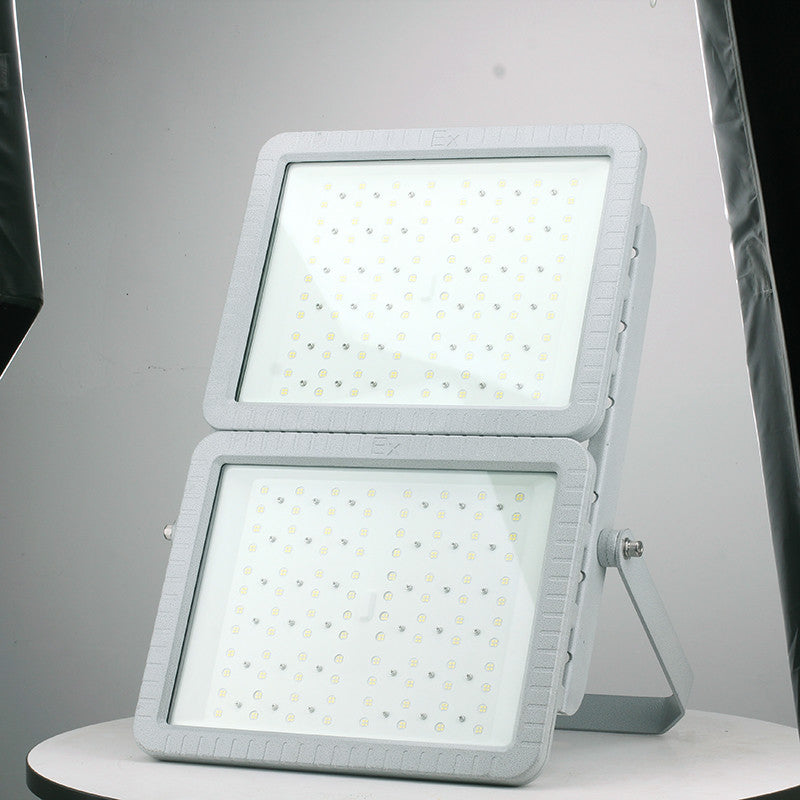

Explosion proof LED floodlight BED51-400W 500W 600W
Explosion proof LED floodlight BED51-400W 500W 600W
Couldn't load pickup availability
echnical Parameter
| Model and specification | Explosion proof sign | Light source | Lamp type | Power (W) | Luminous flux (Lm) | Color temperature (k) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| BED51-□ | Ex db eb mb IIC T5/T6 Gb Ex tb IIIC T95°C/T80°C Db |
LED | I | 30~100 | 3600~12000 | 3000~5700 | 7 |
| II | 110~200 | 13200~24000 | 11 | ||||
| III | 210~320 | 25200~38400 | 17 | ||||
| IV | 350~400 | 42000~48000 | 23 | ||||
| V | 450~600 | 54000~72000 | 36 |
| Rated voltage/frequency | Inlet thread | Cable outer diameter | Degree of protection | Anti corrosion grade |
|---|---|---|---|---|
| AC85V-220V/50Hz/60HZ | G3/4 | Φ10~Φ14mm | IP66 | WF2 |
| Emergency starting time (S) | Charging time (h) | Emergency power (within 100W) | Emergency power (W) | Emergency lighting time (min) |
|---|---|---|---|---|
| ≤0.3 | 24 | ≤20W | 20W~50W optional | ≥60min、≥90min optional |
Product Features
1. The radiator is designed to be made of special cast aluminum alloy by die-casting, and its surface is sprayed with high voltage static electricity;
2. Exposed stainless steel fasteners with high corrosion resistance;
3. The flame-proof thread flame-proof joint surface of the rabbet has a pure flame-proof structure and more reliable explosion-proof performance;

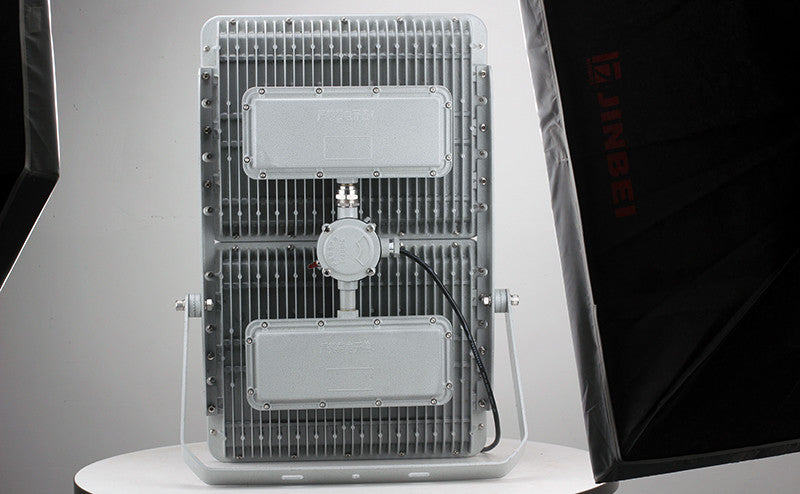

4. Standard three box separation structure design, modular installation and combination. Effectively reduce temperature rise to ensure long life of lamps;
5. Multi point lighting, high light utilization, uniform illumination without glare;
6. High strength material, transparent tempered glass, with strong impact resistance, heat resistance and high light transmittance;
7. The constant current power supply has wide voltage input and constant current output, and has the protection functions of shunt, surge prevention, overcurrent, open circuit, open circuit, high temperature, anti electromagnetic interference, etc;
8. Power factor cos φ ≥0.95;
9. Steel pipe or cable wiring.
Installation Dimensions
| Serial No | Specification and model | Type of lamp housing | Power range (W) | A(mm) | B(mm) | C(mm) | H(mm) |
|---|---|---|---|---|---|---|---|
| 1 | BED51-100W | I | 30~100 | 308 | 255 | 105 | 240 |
| 2 | BED51-200W | II | 110~200 | 448 | 308 | 150 | 220 |
| 3 | BED51-320W | III | 210~320 | 480 | 380 | 200 | 330 |
| 4 | BED51-400W | IV | 350~400 | 448 | 616 | 300 | 220 |
| 5 | BED51-600W | V | 450~600 | 480 | 760 | 300 | 330 |
Applicable Scope
1. It is applicable to the places in Zone 1 and Zone 2 of explosive gas environment;
2. It is applicable to the places in Zone 21 and 22 of combustible dust environment;
3. Suitable for IIA, IIB and IIC explosive gas environment;
4. Applicable to T1~T6 temperature groups;
5. It is applicable to energy-saving transformation projects and places where maintenance and replacement are difficult;
6. It is widely used for lighting in oil exploitation, oil refining, chemical industry, gas station, textile, food processing, offshore oil platforms, oil tankers and other places.
