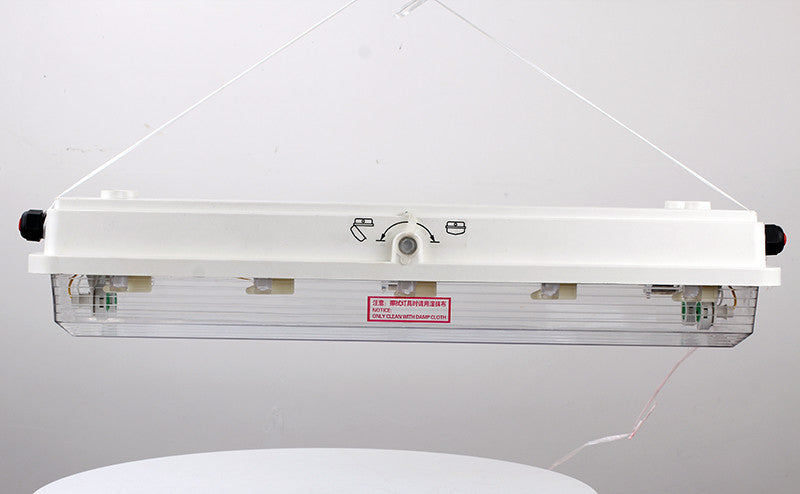

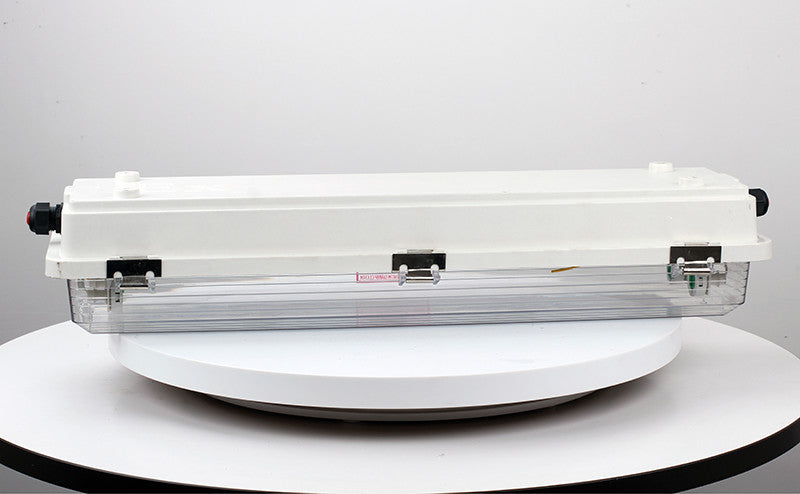

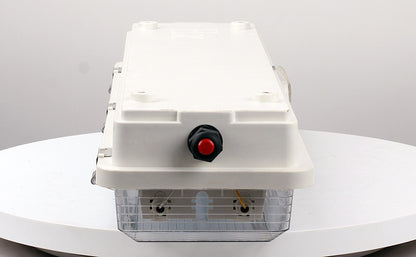

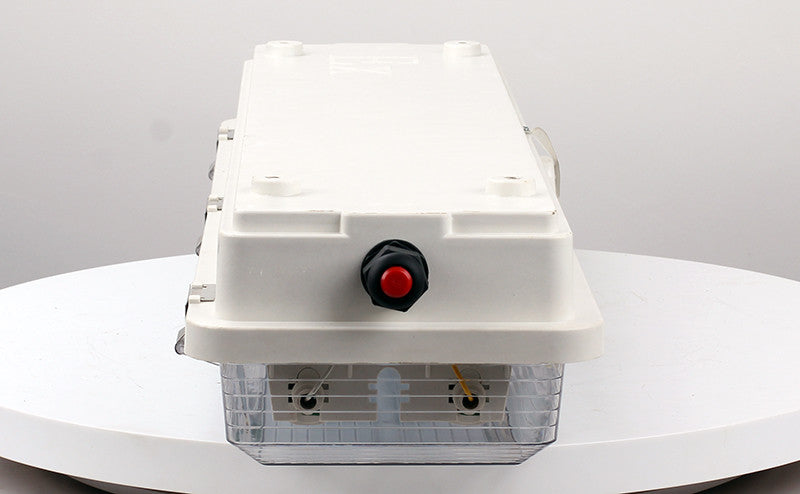

Explosion proof Fluorescent Light BYS-I Flameproof Corrosion-Resistant All-Plastic Fluorescent Light

ype:Flameproof Corrosion-Resistant All-Plastic Fluorescent Light For Hazardous Locations

Color:Grey

Ex Mark:Ex db eb mb IIC T5 Gc; Ex tb IIIC T80°C Db

IP Rating:IP66

Model Number:BYS-I

Lamp Power(W):1*16W / 2*16W / 3*16W

Emitting Color:Warm White / Cold White

Warranty(Year):3-Year

Place of Origin: China

Input Voltage(V):220V

Product Weight（kg）:2.5

Color Temperature(CCT):2700-6500k

Working Temperature(℃):-20~40

Color Rendering Index(Ra):80

Lamp Luminous Efficiency(lm/w):120

Product Features

1. The shell is made of high-strength molding. The transparent cover adopts polycarbonate injection molding with good light transmittance and strong impact resistance;

2. Labyrinth structure is adopted for the shell, which is characterized by good dust-proof, waterproof and strong corrosion resistance;

3. The built-in ballast is a special explosion-proof ballast with a power factor ≥ 0.95. The built-in disconnecting switch automatically cuts off the power supply when the product is opened to improve the safety performance of the product; It also has short circuit and open circuit protection functions. It is equipped with prevention circuits for the aging effect and air leakage of the lamp tubes, so that the lamps can work normally, with high efficiency and energy saving. It has wide voltage input range, constant power output and other characteristics;

4. Equipped with well-known brand fluorescent tubes, with long service life and high luminous efficiency;

5. Emergency devices can be configured according to user requirements. When the external power is cut off, the lamps will automatically switch to the emergency lighting state;

6. Steel pipe or cable wiring is acceptable.

Applicable Scope

1. It is applicable to the places in Zone 1 and Zone 2 of explosive gas environment;

2. It is applicable to the places in Zone 21 and 22 of combustible dust environment;

3. Suitable for IIA, IIB and IIC explosive gas environment;

4. Applicable to T1~T6 temperature groups;

5. It is applicable to work and scene lighting in dangerous environments such as petroleum exploitation, oil refining, chemical industry and gas station;

6. It is applicable to places with high protection requirements, humidity and corrosive gases.
