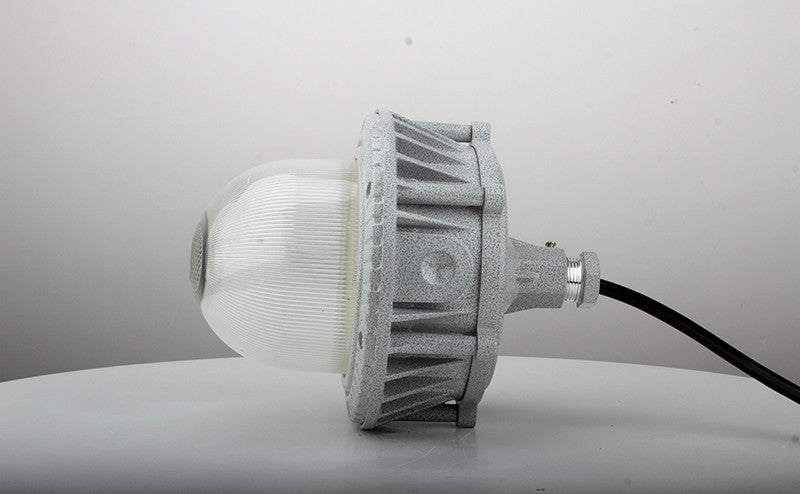

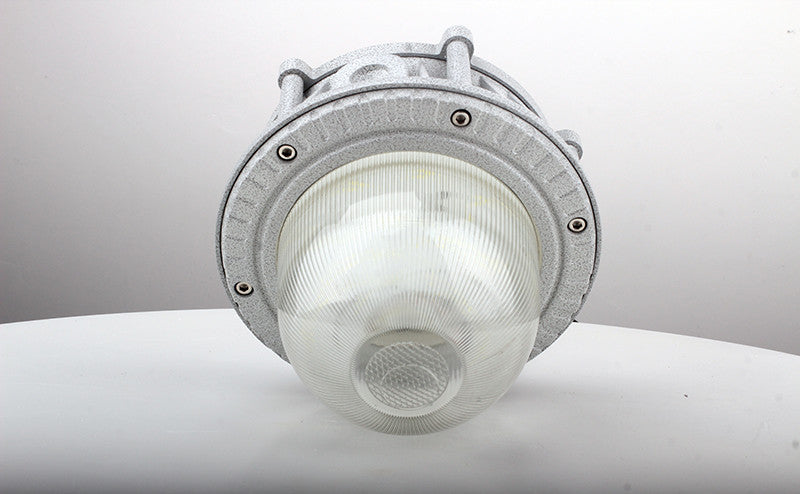

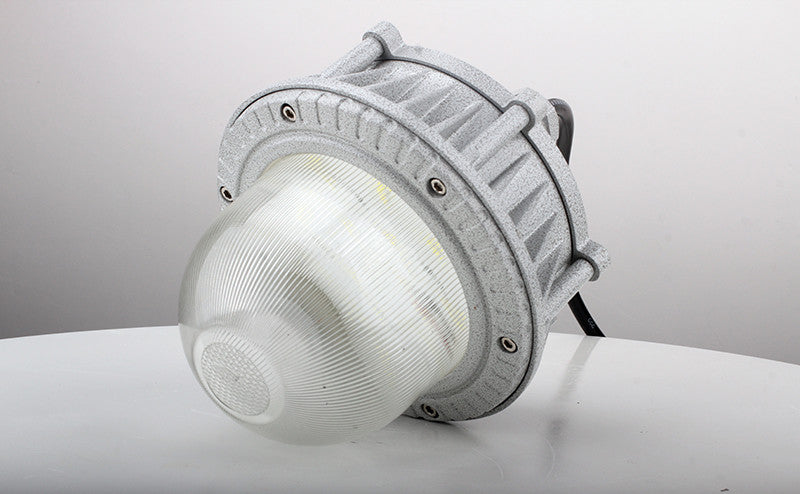

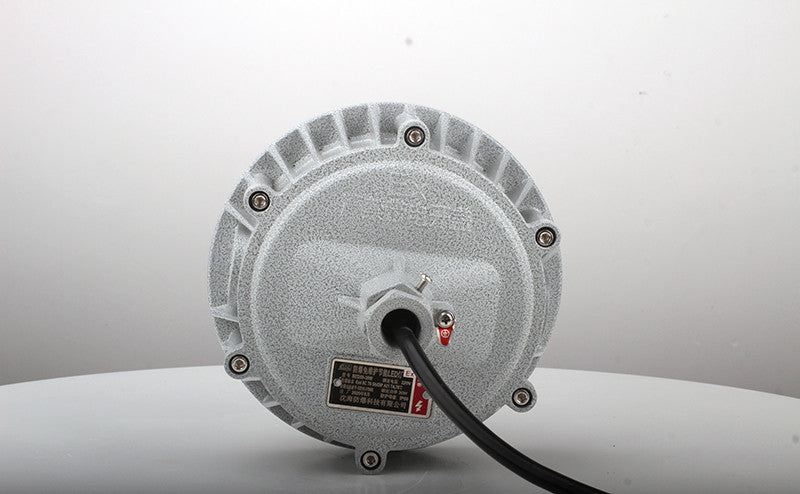

Explosion proof LED light BED60-30W 50W 60W 70W 80W 100W

Type:Flameproof Light For Hazardous Locations

Color:Grey

Ex Mark:Ex db IIC T6 Gb; Ex tb IIIC T80℃ Db

IP Rating:IP66

Model Number:BED60-I

Lamp Power(W):10 / 20 / 30 /50 /70 /80 /90 /100

Emitting Color: Cold White

Warranty(Year):5-Year

Place of Origin:China

Input Voltage(V):85V-220V

Product Weight（kg）:1.9

Color Temperature(CCT):2700-6500k

Working Temperature(℃):-20~40

Color Rendering Index(Ra):80

Lamp Luminous Efficiency(lm/w):120

Product Features

1. The radiator design is made of special cast aluminum alloy die-casting, with high-pressure electrostatic spraying on the surface

2. High anti-corrosion stainless steel exposed fasteners;

3. The sealing explosion-proof joint surface is a pure explosion-proof structure, with more reliable explosion-proof performance;

4. Multi point luminescence, high light utilization rate, uniform illumination without glare;

5. Constant current power supply with wide voltage input and constant current output, with protection functions such as shunt, anti surge, overcurrent, open circuit, open circuit, high temperature, and anti electromagnetic interference;

6. Microwave induction dimming system, energy-saving and environmentally friendly;

7. Power factor cos φ≥ 0.95;

8. Combination emergency devices can be equipped according to usage requirements. When the power supply is cut off, it can automatically switch to the emergency lighting state;

9. Steel pipe or cable wiring.

Applicable Scope

1. It is applicable to the places in Zone 1 and Zone 2 of explosive gas environment;

2. It is applicable to the places in Zone 21 and 22 of combustible dust environment;

3. Suitable for IIA, IIB and IIC explosive gas environment;

4. Applicable to T1~T6 temperature groups;

5. It is applicable to energy-saving transformation projects and places where maintenance and replacement are difficult;

6. It is widely used for lighting in oil exploitation, oil refining, chemical industry, gas station, textile, food processing, offshore oil platforms, oil tankers and other places.
