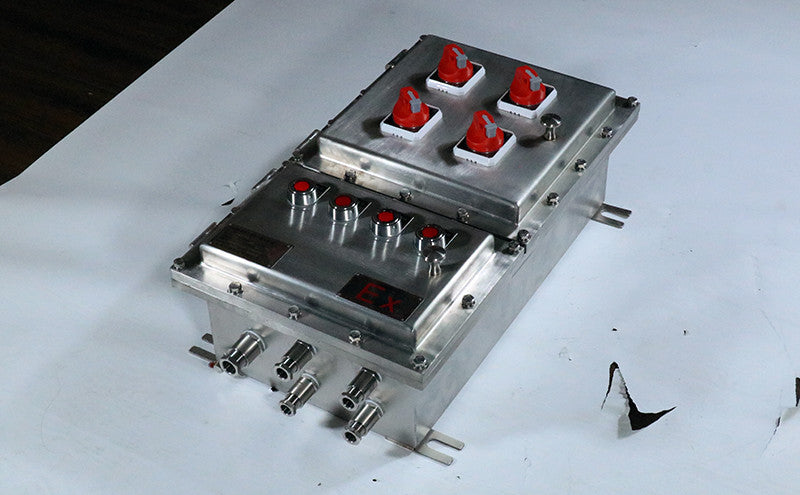

Explosion-Proof Stainless Steel Distribution Box‌ Certified SUS304 construction customizable for total or divided circuit configurations; assured reliability.

Scope of Application

Suitable for explosive gas environments Zone 1 and Zone 2;
Suitable for combustible dust environments Zone 20, Zone 21, and Zone 22;
Suitable for explosive gas environments of Class IIA, IIB, and IIC;
Suitable for explosive hazardous environments such as oil extraction, storage, chemical, pharmaceutical, textile, printing and dyeing, military, and military facilities.

Product Features

The product shell is made of stainless steel plate welding, equipped with stainless steel exposed fasteners, and has a beautiful appearance;
The explosion-proof power maintenance box adopts a composite, modular structure, and each circuit can be freely assembled as needed. Generally, the switch box adopts a flame-proof structure, and the busbar outlet box adopts an increased safety structure;
The internal components can be configured according to user requirements, and can be customized for box surface or remote operation according to customer requirements, such as adding surge protectors, ammeters, voltmeters, etc., and can be equipped with a padlock metal handle externally;
Suitable for controlling multiple motors, each branch is equipped with circuit breaker protection;
Both steel pipe or cable wiring are acceptable;
Complies with GB3836.1-2010, GB3836.2-2010, GB3836.3-2010, GB12476.1-2013, GB12476.5-2013, IEC60079 standards.
